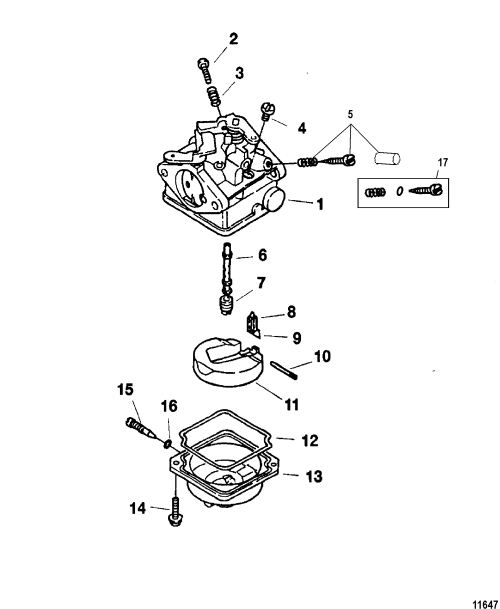

| Key |
Part Number |
Description |
Qty Req |
Comments |
Price |
Qty on Hand |
|
| - |
803508T06 |
GASKET SET, Powerhead |
|
|
|
|
|
| |
| 1 |
803819T03 |
CARBURETOR |
|
4 Horsepower |
|
|
|
| |
| 1 |
804766A05 |
CARBURETOR |
|
6 Horsepower EU SN# 0R162801 & Up |
|
|
|
| |
| 1 |
804766A04 |
CARBURETOR |
|
6 Horsepower EU SN# 0R162800 & Below |
|
|
|
| |
| 1 |
804766T03 |
CARBURETOR |
|
6 Horsepower |
|
|
|
| |
| 1 |
803522A05 |
CARBURETOR |
|
5 Horsepower EU SN# 0R162801 & Up |
|
|
|
| |
| 1 |
803522A04 |
CARBURETOR |
|
5 Horsepower EU SN# 0R162800 & Below |
|
|
|
| |
| 1 |
803522T03 |
CARBURETOR |
|
5 Horsepower |
|
|
|
| |
| 1 |
803819A05 |
CARBURETOR |
|
4 Horsepower EU SN# 0R162801 & Up |
|
|
|
| |
| 1 |
803819A04 |
CARBURETOR |
|
4 Horsepower EU SN# 0R162800 & Below |
|
|
|
| |
| 2 |
8035095 |
SCREW |
|
|
|
|
|
| |
| 3 |
803554 |
SPRING |
|
|
|
|
|
| |
| 4 |
803524004 |
JET, Pilot (#35) |
|
4 Horsepower |
|
|
|
| |
| 4 |
8035243 |
JET, Pilot (#38) |
|
5/6 Horsepower |
|
|
|
| |
| 5 |
803509019 |
SCREW ASSEMBLY, Pilot |
|
USA |
|
|
|
| |
| 6 |
812650012 |
MAIN NOZZLE |
|
4 Horsepower |
|
|
|
| |
| 6 |
812650017 |
MAIN NOZZLE |
|
6 Horsepower EU SN# 0R162801 & Up |
|
|
|
| |
| 6 |
812650014 |
MAIN NOZZLE |
|
6 Horsepower |
|
|
|
| |
| 6 |
812650016 |
MAIN NOZZLE |
|
5 Horsepower EU SN# 0R162801 & Up |
|
|
|
| |
| 6 |
812650013 |
MAIN NOZZLE |
|
5 Horsepower |
|
|
|
| |
| 6 |
812650015 |
MAIN NOZZLE |
|
4 Horsepower EU SN# 0R162801 & Up |
|
|
|
| |
| 7 |
16250011 |
JET, Main (#68) |
|
6 Horsepower |
|
|
|
| |
| 7 |
162508 |
JET, Main (#65) |
|
5 Horsepower |
|
|
|
| |
| 7 |
162505 |
JET, Main (#60) |
|
4 Horsepower |
|
|
|
| |
| 7 |
16250012 |
JET, Main (#58) |
|
All EU SN# 0R162801 & Up |
|
|
|
| |
| 8 |
162543 |
FLOAT VALVE, Brass |
|
|
|
|
|
| |
| 9 |
803525 |
CLIP, Stainless Steel |
|
|
|
|
|
| |
| 10 |
162562 |
PIN, Float - Stainless Steel |
|
|
|
|
|
| |
| 11 |
162533 |
FLOAT |
|
|
|
|
|
| |
| 12 |
8035084 |
GASKET, Rubber |
|
|
|
|
|
| |
| 13 |
16258T5 |
FLOAT BOWL |
|
|
|
|
|
| |
| 14 |
16260 |
SCREW, (M4 x 12) |
2 |
|
|
|
|
| |
| 15 |
8035093 |
SCREW, Drain (M5 x 6) |
|
|
|
|
|
| |
| 16 |
8035131 |
O-RING, Rubber |
|
|
|
|
|
| |
| 17 |
803509020 |
SCREW ASSEMBLY, Pilot |
|
EU |
|
|
|
| |
